ZIEWNIC Solar Panel 640 Watts Model Type TS-M-640DE22 (MULTI BUSBAR) HALF CUT MONO PERC Reliable quality leads to a better sustainability even in harsh environment 5 Years Brand Warranty ( Delivery Only For Karachi )

ZIEWNIC

ZIEWNIC Solar Panel 640 Watts Model Type TS-M-640DE22 (MULTI BUSBAR) HALF CUT MONO PERC Reliable quality leads to a better sustainability even in harsh environment 5 Years Brand Warranty ( Delivery Only For Karachi )

ZIEWNIC Solar Panel 640 Watts Model Type TS-M-640DE22 (MULTI BUSBAR) HALF CUT MONO PERC Reliable quality leads to a better sustainability even in harsh environment 5 Years Brand Warranty ( Delivery Only For Karachi )

(1)
Rs.65,999.00 PKR
Rs.78,500.00 PKR Rs.65,999.00 PKR
Sale Sold out
Shipping calculated at checkout.

View full details

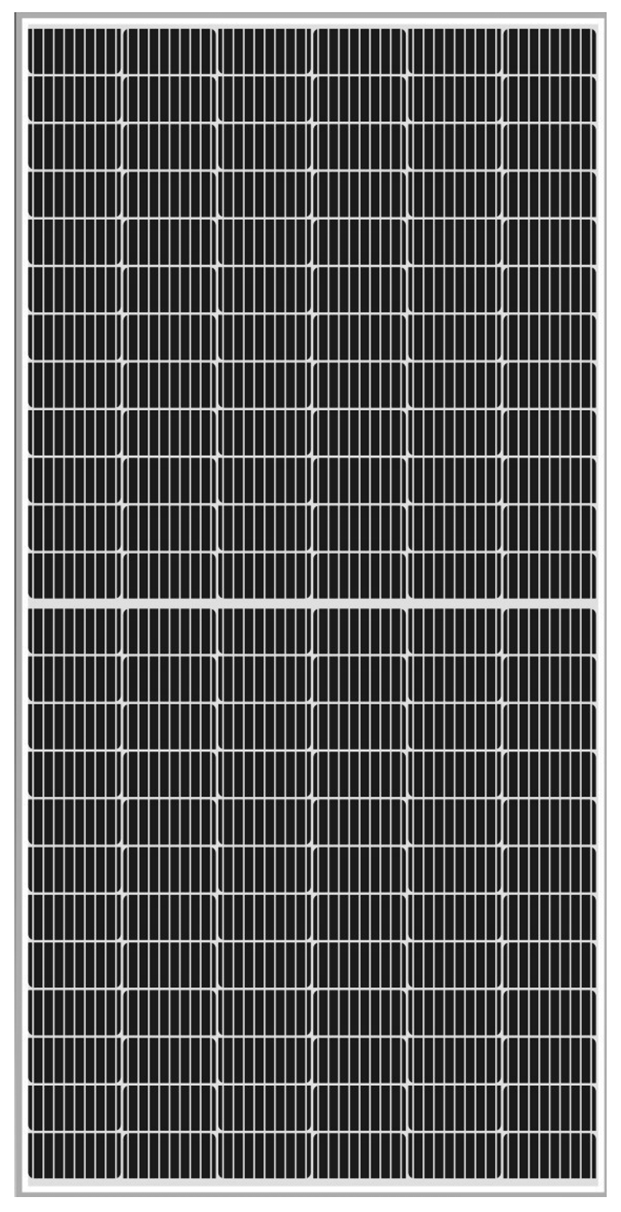

ZIEWNIC Solar Panel 640 Watts Model Type  TS-M-640DE22 (MULTI BUSBAR) HALF CUT MONO PERC Reliable quality leads to a better sustainability even in harsh environment  5 Years Brand Warranty ( Delivery Only For Karachi )

  • Ultimate string power 37% higher string power
  • Most efficient cost-saving
  • High output power
  • Better power generation under shadows
  • Strong anti-hot spot ability
  • Strong mechanical load capacity
  • Super strong frame
  • 1500V system voltage
MECHANICAL SPECIFICATION
Cell Type Half Cut Mono Perc 210x105mm
Number Of Cells 120（6x20）
Dimensions(AxBxC) 2202x1302x35mm
Weights 30.9kg
Glass 3.2mm Tempered Low Iron Glass
Aluminium Frame Anodised Aluminium
Junction Box Split Junction Box (IP68 ,three diode)
Connector Mc4 Compatible
Output Cables 4.0mm²,+300mm,-300mm Customized Length
ELECTRICAL CHARACTERISTICS
Module Type 640W
Maximum Power At STC (Pmax) STC
Short Circuit Current (Isc) 640w+/-3%
Open Circuit Voltage (Voc) 17.9A+/-4%
Maximum Power Current (Impp) 43.5V+/-3%
Maximum Power Voltage (Vmpp) 16.9A
Module Efficiency 20.98%
Power Tolerance 0~+5W
Maximum System Voltage IEC 1500V
Maximum Series Fuse 30A
Module Application A Tier1
Operating Temperature -40~+85°C
Number Of Bypass Diodes 2
Temperature Coefficient Of Pmax -0.36%°C
Temperature Coefficient Of Voc -0.29%°C
Temperature Coefficient Of Isc 0.05%°C
PACKING CONFIGURATION
Container 40’ HQ
Pieces Per Container 565
