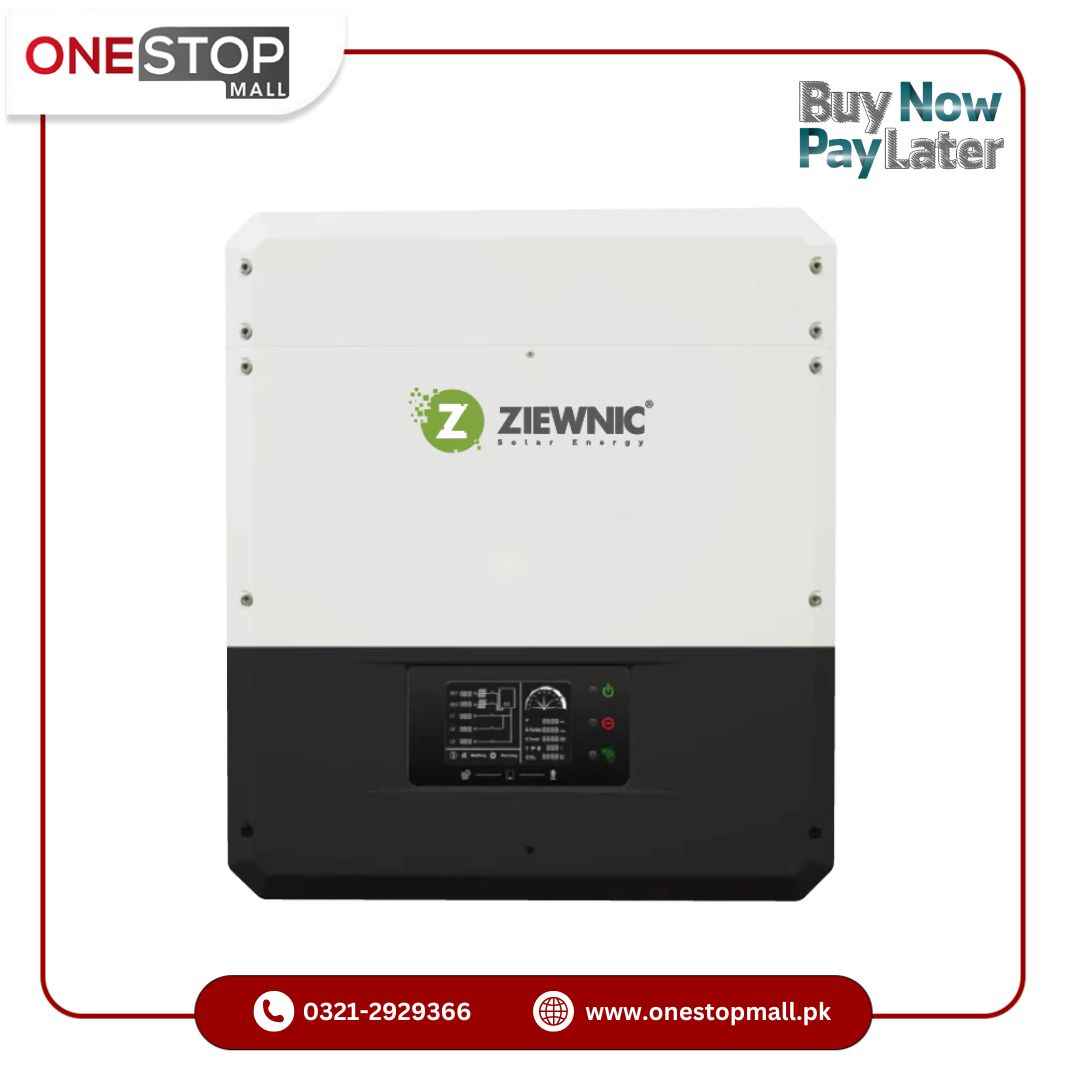

ZIEWNIC Inverter TriPower 25KW X25KTL 3 Phase Inverter Dual MPPT for Efficient Tracking Quick Setup Wi-Fi to App 5 Years Brand Warranty

ZIEWNIC Inverter TriPower 25KW X25KTL 3 Phase Inverter Dual MPPT for Efficient Tracking Quick Setup Wi-Fi to App 5 Years Brand Warranty

Regular price Rs.459,099.00 PKR
Regular price Rs.550,000.00 PKR Sale price Rs.459,099.00 PKR
Sale Sold out
Shipping calculated at checkout.

1 total reviews

View full details

ZIEWNIC Inverter TriPower 25KW X25KTL 3 Phase Inverter Dual MPPT for Efficient Tracking Quick Setup Wi-Fi to App 5 Years Brand Warranty

  • Quick and easy to install with basic tools
  • Sufficient installation accessories and various optional accessories
  • Quick set up WIFI to APP
  • International quality standards
  • IP65 waterproof for outdoor use
  • Transformerless with three level topology
  • Dual MPPT for Efficient tracking
  • Particular design for anywhere
  • Smart string monitoring

ZIEWNIC Inverter TriPower 25KW X25KTL 3 Phase Inverter Dual MPPT for Efficient Tracking Quick Setup Wi-Fi to App



Max DC Power (W)
Max DC Power (W) 30000
Max DC Voltage VDC) 1000
Min Working Voltage (VDC) 250
MPPT Voltage range (VDC) 250~850
Max Input Current / Per String (A) 26/26
Number of MP Trackers 2
Strings Per MP Trackers 4
AC SIDE / OUTPUT PARAMETERS
AC Nominal Power W 25000
Max AC apparent Power (VA) 27500
Max output current (A) 36
Nominal AC output 50/60 Hz; 400Vac
AC output range 45/55 Hz; 280 ~ 490Vac (Adi)
Power factor 0.8 Leading... 0.8 Laging
Harmonics < 1.5%
Grid type 3 W/N/PE
EFFICIENCY
Max Efficiency 98.7%
Euro Efficiency 98.2%
MPPT Efficiency 99.9%
SAFETY & PROTECTION
DC Reverse-Polarity Protection Yes
DC Breaker Yes
DC Breaker Yes
Leakage Current Protection Yes
Insulation Impedance Detection Yes
Residual Current Protection Yes
GENERAL SPECIFICATIONS
Operating Temerature Range -25 ~ +60
Degree of Protection IP65
Cooling Concept Natural Convection
Topology Transformerless
Display LCD
Humidity 0-95%, No Condensation
Communication Standard WIFI; RS485 (Optional)
Warranty 5 Years (Terms & Condition Apply)
