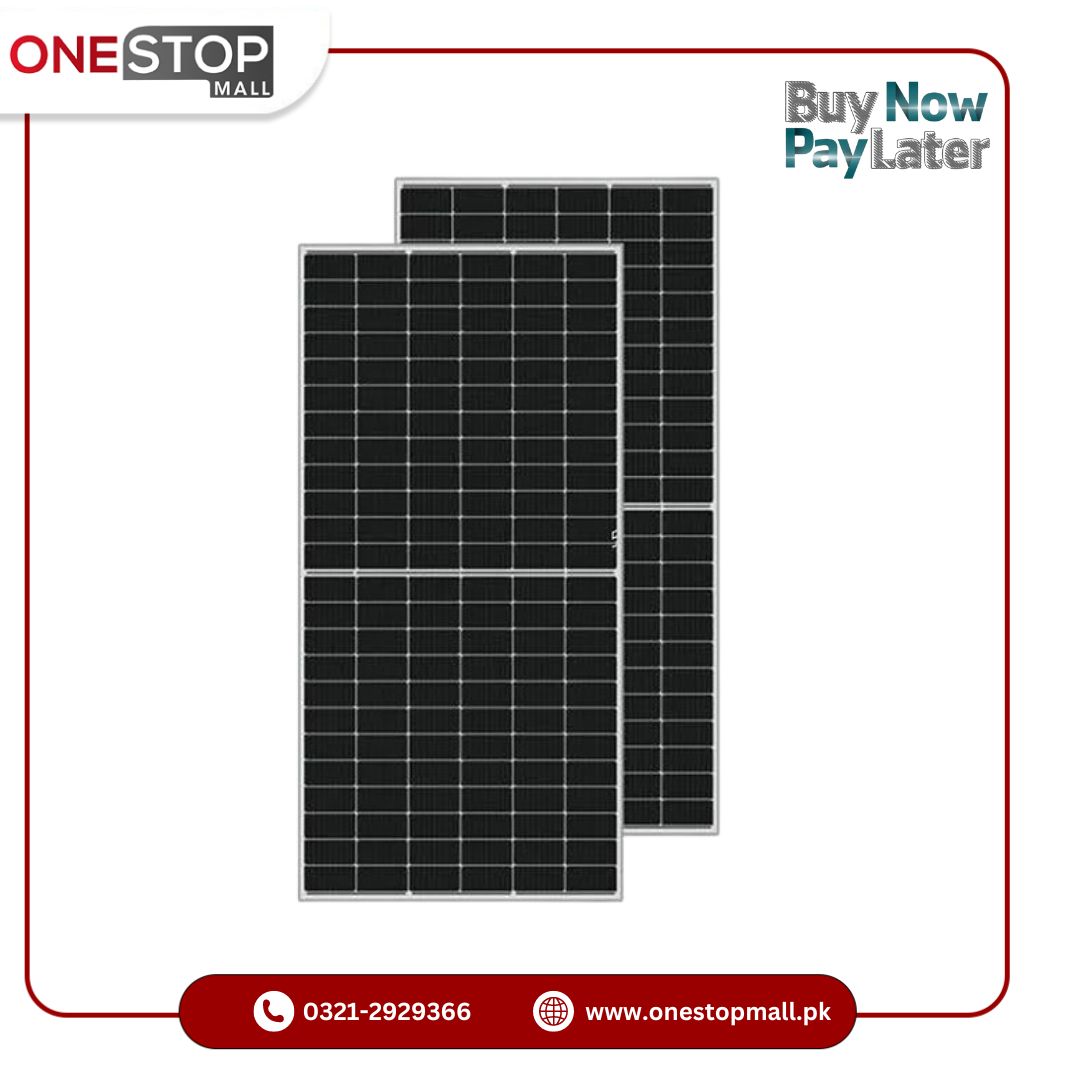

JA Solar 550w Panel Mono PERC 25 Year Brand Warranty
JA Solar 550w Panel Mono PERC 25 Year Brand Warranty

JA Solar 550w Panel Mono PERC 25 Year Brand Warranty

Vendor: JA
SKU: JA Solar 550w Panel Mono -1
Availability: Out Of Stock
Product Type: Solar Panels
Rs.33,499.00
Rs.45,000.00
Rs.33,499.00
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Please Select Cod For Cash/Credit Card Or BNPL For Installment: COD
Subtotal: Rs.33,499.00
Buttons Daraz Shop Alfa Mall Zood Logo
10 customers are viewing this product

Free Shipping In Karachi

Cash on Delivery Available All over Pakistan

Free Delivery Only Karachi ..Delivery Within 48 Hours

Other City 5 to 7 Day Delivery Time

Free Returns

7 Days Return Policy

Change of mind is not applicable

Return charges will Pay by the Customer

Other Cities

Cash on delivery is available for items up to 10,000 PKR, and for items above 10,000 PKR, a 5,000 PKR advance payment needs to be made to the company's account
JA Solar 550w Panel Mono PERC 25 Year Brand Warranty

JA Solar 550w Panel Mono PERC 25 Year Brand Warranty

Rs.45,000.00 Rs.33,499.00
JA Solar 550w Panel Mono PERC 25 Year Brand Warranty
JA Solar 550w Panel Mono PERC 25 Year Brand Warranty

JA Solar 550w Panel Mono PERC 25 Year Brand Warranty

Rs.45,000.00 Rs.33,499.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment: COD
Description
Description
x


JA Solar 550w Panel Mono PERC 25 Year Brand Warranty


  • STC Power Rating 550W
  • PTC Power Rating 513.69W 1
  • STC Power per unit of area 19.8W/ft2 (212.8W/m2)
  • Peak Efficiency 21.28%
  • Power Tolerances 0%/+5%
  • Number of Cells 144
  • Nominal Voltage not applicable
  • Imp 13.11A
  • Vmp 41.96V
  • Isc 14A
  • Voc 49.9V
  • NOCT 45°C
  • Temp. Coefficient of Isc 0.04%/K
  • Temp. Coefficient of Power -0.35%/K
  • Temp. Coefficient of Voltage -0.137V/K
  • Series Fuse Rating 25A
  • Maximum System Voltage 1500V

Mechanical Characteristics

  • Type Mono PERC
  • Output Terminal Type Multicontact Connector Type 4
  • Output Cable Wire Gauge 12 AWG
  • Output Cable Wire Type PV Wire
  • Output Cable Wire Length 51.2in (1,300mm)
  • Frame Color Clear
  • Backsheet Color White
  • Length 89.7in (2,279mm)
  • Width 44.6in (1,134mm)
  • Depth 1.4in (35mm)
  • Weight 63.1lb (28.6kg)
  • Installation Method Rack-Mounted

Warranty and Certifications

  • 80% Power Output Warranty Period 25yrs
  • 90% Power Output Warranty Period 12yrs
  • Workmanship Warranty Period 12yrs
  • UL Fire Classification Type 1
  • Compliances UL 1703, IEC 61215, IEC 61730, CEC, TUV
  • CSI Listed No



JA 550W MONOFACIAL SOLAR PANEL | SUNTECH MALL

Pallet Solar Panels JA SOLAR 550W Half-Cut silver frame (JAM72S30-550/MR) - FVComponentes.com550w Ja Solar Panels | pallet 31 - End Loadshedding

JA Solar 550W JAM72S30-550/MR

JA Solar 550W JAM72S30 550/MR is a monocrystalline 540W solar panel is ideal for self-consumption and industrial solar installations. Modules of high quality and resistance, made of polycrystalline silicon with anodized aluminum frame.

JA Solar 550W JAM72S30 550/MR solar panels can be combined with state-of-the-art lithium batteries, as well as traditional lead-acid and GEL/AGM batteries with their corresponding charge regulator. In Suministros del Sol we offer solar panels of recognized world-wide prestige as well as in all its components, so much in its solar inverters, solar panels, regulators of load and batteries for solar installations.

See Technical Data Solar Panel JA Solar 550W JAM72S30 550/MR

Characteristics of the solar panel JA Solar 550W JAM72S30 550/MR

Jinko Tiger 1.png

Solar cell 9 bus bar

The 9 bus bar solar cell adopts a new technology to improve the efficiency of the modules, offering a better aesthetic appearance, which is perfect for installation on roofs.
Jinko Tiger 3.png

High efficiency

High module conversion efficiency (up to 20.56%) thanks to new production technology.
Jinko Tiger 2.png

Avoid crack risks effectively

9BB technology using round wire ribbon that can avoid crack risks effectively.

High efficiency PERC technology, we can get up to 20.56% thanks to PERC technology (Passivated Emmitter Rear Contact)

TR technology with half cell aims to reduce the cell gap, increasing the module efficiency.

Excellent response in conditions of low solar radiation, the design of the glass and surface of the solar cell ensure an excellent response in conditions of low temperature.

PERC Mono: Optimize the performance of your installation. The PERC technology has meant a great development within the photovoltaic sector thanks to the increase in performance of the photovoltaic modules. This type of cells have a back layer that helps capture more solar radiation and a sheet that makes the excess sunlight rebound inside the cell and allows you to recover the surplus that the solar panels do not use. With this, we increase the capture efficiency of solar cells compared to photovoltaic solar panels with the same distribution, reducing the production price and the final cost of solar panels.

Technical specifications JA Solar 550W JAM72S30 550/MR

data sheet JA Solar 455W JAM78S10 455/MR
